Lab scale test facilities

Atmospheric drop tube furnace (BTS-ER)

Investigation of gasification and pyrolysis processes of solid fuels

The pyrolysis reactor

The reactor consists of a heated ceramic tube. A gas preheater, an automatic metering device and the measuring instruments are also integrated at the reactor.

Configuration

Scheme of the atmospheric drop tube furnace for gasification and pyrolysis processes (c)

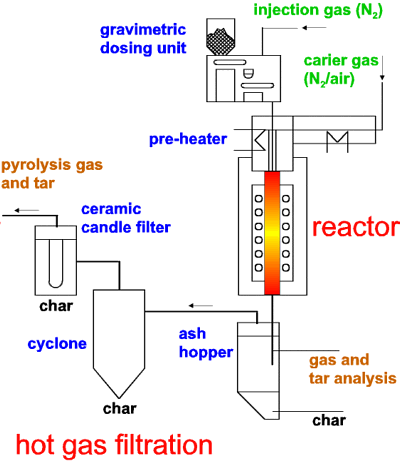

Scheme of the atmospheric drop tube furnace for gasification and pyrolysis processes
Atmospheric drop tube furnace for gasification and pyrolysis processes (c)

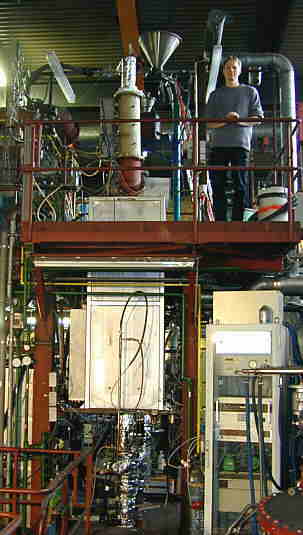

Atmospheric drop tube furnace for gasification and pyrolysis processes
Technical Data
Pressure: atmospheric
Temperature range: max. 1300 °C
Fuel: varying
Fuel mass flow: 500-5000 g/h
Reaction pipe length: 2700 mm
Reaction pipe diameter: 80 mm
